Overview

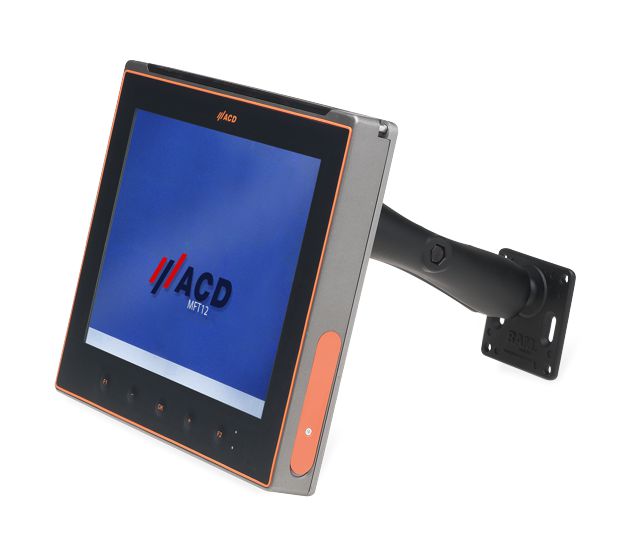

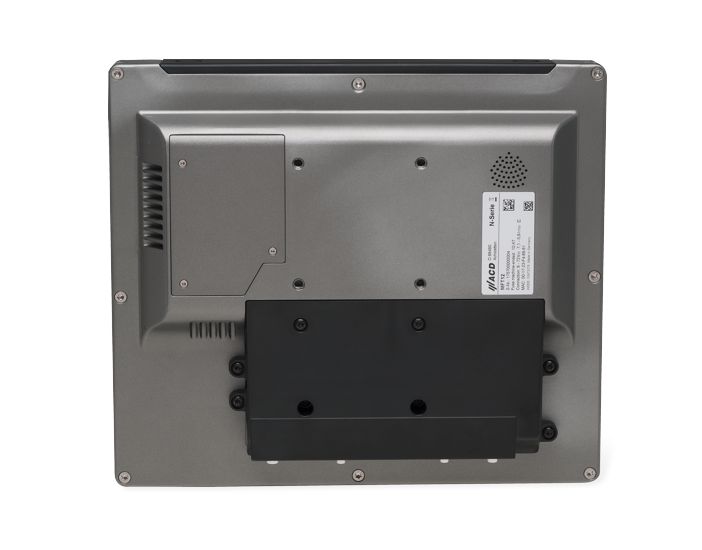

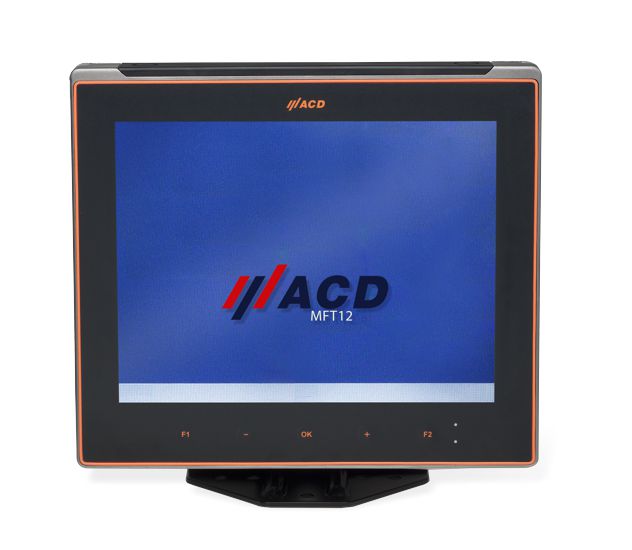

In order to optimise your order picking processes as well as other challenging logistics applications, the MFT12 vehicle terminal with large 12,1″ TFT display with LED backlight and resistive touch screen offers more space for the display of complex applications as well as excellent legibility. As a result, the MFT12 enables simplified handling along with intuitive entry, flawless operation and quicker work procedures.

The individually configurable function keys can be precisely aligned to your needs, thus ensuring sufficient free space. Thanks to the numerous and various interfaces, all opportunities to connect further components remain open. Accessories such as additional batteries and various holders create more flexibility.

Stock and route optimisation as well as flexibility in terms of service and constant controlling provide an effective working process and high quality in order processing.

Key Features

  • CPU
    Intel Celeron© Quad Core 4x 1,83 GHz (N2930; Bay-Trail-M)
  • Operating System
    Windows© Embedded Standard 7
    Windows© 10 IoT Enterprise 2016
  • Memory
    64 GB flash, 4GB RAM (DDR3L), larger memory optionally available
  • Operating/Storage temperature
    -30 °C to 45 °C
    -30 °C to 70 °C
  • Weight
    approx. 3,6 kg
  • Power Supply
    9 V to 72 V DC (electrically isolated)
  • Protection class
    IP65
  • Resilience
    Shock and Vibration according to EN 60068-2 Part -6, -27
  • Housing
    Aluminium, powder-coated
  • Various screen versions
    resistive/capacitive (various brightness levels),
    minimum surface hardness of 3H, with robust, chemically hardened beaming glass
  • Wi-Fi
    WLAN 802.11/a/b/g/n or WLAN 802.11/a/b/g/n/ac
  • Flexible connection options
    USB 2.0/3.0, RS232
  • High usability
    freely configurable function keys and external keyboard versions
  • Accessories
    different vehicle mounts, quick exchange system, external keyboards
  • Battery
    Integrated battery for up to 1,5 hours operation
  • RFID
    HF-RFID Reader

About Company

ACD is an owner-managed group of companies that belongs to the technological leading providers inside electronics.
In the fields of portable devices and applications for retail and logistics, EMS as well as customer-specific developed industrial electronics for medical, producing industries, mechanical and commercial vehicle engineering, ACD is a manufacturer and a system service provider at the same time.

Business Activities
* Mobile devices for retail, logistics and industry (intralogistics).
* Industrial electronics: Mobile applications and control panels.
* EMS-Services and (customer-spezific) development in the industry like mechanical engineering, tool building, commercial vehicles and medical engineering.
* Drive Engineering: Solutions for customer-optimized drives

Certifications
• ISO 9001
• ISO 14001
• ISO 13485
• ISO/TS 16949
