How to send a configuration file to CT50 internal storage ?

SM
Sherry, Melukadaval
WAVELOGIX FZC

In my CT50(Android) i have some modified configurations. Now i want to send this configuraitons (xml files) to all my devices using SOTI.
I exported this xml using Honeywell EZ config. In order to put this configuration in other devices, i have to place this xml in the 'Storage\IPSM card\honeywell\persist' folder . But when i tried to do this by intalling a package through my android profile, it doesn't work. The xml file doesn't appear in the device even after profile installation.


I guess the issue is that either SOTI don't have permission to write into this folder Or the destination path is not correct.

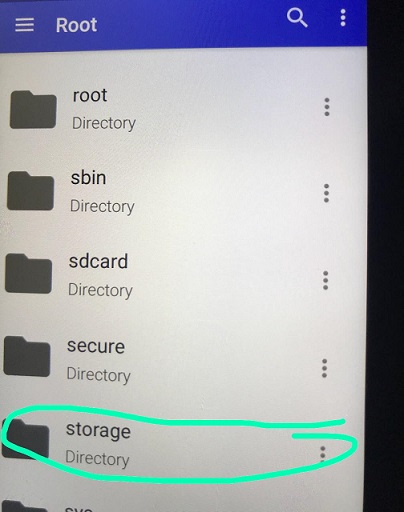

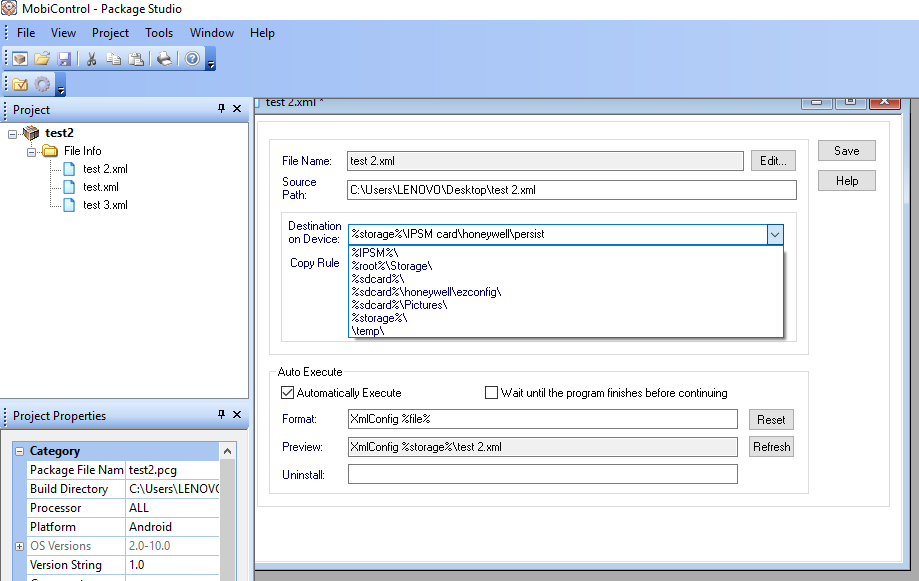

I attach the screenshots. Please advise.

Ref: https://support.honeywellaidc.com/s/article/Persistent-scanner-and-wedge-settings-on-Android-Devices

Edited 6 years ago
Android
ANSWERS
SM

Can any one plese address this query ?.

RC
Raymond Chan Diamond Contributor
6 years ago

As I don't have any CT50 device or EZ Config to do any test, I can only share the general idea what I would try if I were you.

Directory access permission has always been a limitation for some MobiControl policies such as pcg deployment, file-sync rules, etc.  This is unavoidable as MobiControl device agent is not a kernel module but just an ordinary app that  can initiate calls to   some specialized EMM API to kernel modules to perform some limited supervisory tasks.

You can use web-console to send copy script command to the device to test which internal directory on CT50 can be written by Mobicontrol device agent.  Then you can check if EZ Config/XMLConfig can use the xml file in that directory to configure you device.  If so,  re-create you .pcg package with this new directory found to have no access permission issue.

RP
Rodney Phillips
6 years ago

I've had luck just placing the xml file(s) in /sdcard/honeywell/persist - After placing files here and restarting the device, the settings take effect.

check this article for more info:

https://support.honeywellaidc.com/s/article/Persistent-scanner-and-wedge-settings-on-Android-Devices

Also... If persistence is not an absolute requirement for your use case, you can also apply the xml files via soti script/intent (still requires pushing the file, and is path/case sensitive):

https://support.honeywellaidc.com/s/article/How-to-run-DeviceConfig-with-a-SOTI-MobiControl-script-on-an-Android-device

S
SChristian
6 years ago

Hi Sherry,

You can use File Sync rule, where you will specify where exact location you need the file in the device.

You will have to put the config files into the server via Content Library. so when you will push the files via fileSync it will pull it from directly from the server.

For example : %sdcard%Honeywell/Persist

%sdcard% is the macro used for internal storage.

This will resolve the issue.

Thank you.
