Mobile Computers

JLT1214P

By JLT Mobile Computers

SHARE
Overview
Features
Resources
Company

The JLT1214P rugged computer is the latest generation logistics computer from JLT. an integrated 18-60 VDC power supply they are ideal for electrical truck applications and delivers the lowest total cost for a wide variety of logistics applications. It has an integrated 9-36 VDC power supply, but is also available with an isolated 18-60 VDC for electrical truck and forklift installations.

The JLT1214P computer features the revolutionary JLT PowerTouch™ display technology and provides a familiar, user-friendly experience comparable to modern consumer devices. The 1214P can be used both with a gloved or ungloved hand, while ensuring ruggedness, reliability and longevity in even the most demanding environments. The computer also offers enhanced computing performance thanks to a 64-bit Intel quad-core processor. In combination with the new user-friendly touch screen, the higher performance speeds up tasks and increases users’ productivity.

Based on the successful JLT computer platform that has been tested in the field by customers for many years around the globe, the JLT1214P computer is a reliable workhorse designed from the bottom up with the latest processor technology to deliver maximum reliability. It ensures trouble free operation in very tough environments, from cold storage rooms to broiling hot sun, from fixed wall mounts to vibrating forklifts and has all essential features integrated required for a simple, quick, and cost-effective installation. Moreover, it is highly reliable without additional add-ons and cables. JLT1214P is the ultimate logistics computer.

Key Features

  • DIMENSIONS
    305mm (w) x 240mm (h) x 59mm (d)
    12 inch (w) x 9.4 inch (h) x 2.3 inch (d)
  • WEIGHT
    3.5 kg / 7.7 LB
  • PROCESSOR
    Quad core Intel® E3845
  • RAM
    4GB DDR3
  • BOOT MEDIA
    CFast 16GB, 32GB, 64GB, 128GB
  • DISPLAY
    12.1” XGA LED 500 NIT
    Capacitive touch screen with JLT PowerTouch™ display technology and hardened glass
  • OPERATING SYSTEM
    Windows 10
  • RADIO
    Dualband WLAN 802.11 ac, MU-MIMO supported
    Bluetooth v4.2
  • Antennas
    User configurable external or internal
    WLAN and Bluetooth antennas

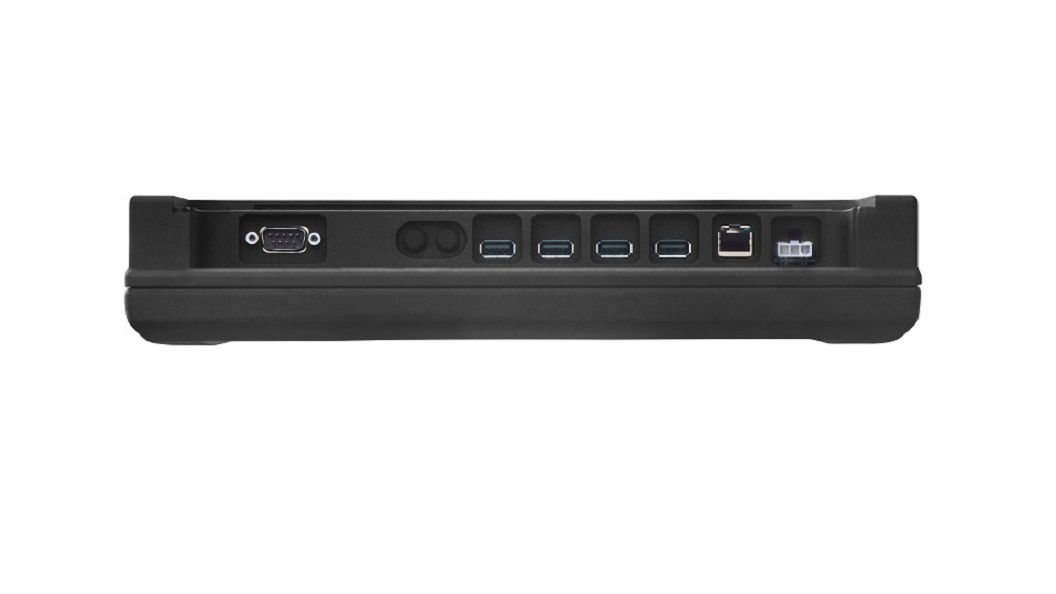

  • INTERFACES
    4x USB 2.0
    1x Ethernet 10/100/1000
    1x RS232 with 5V
  • SPEAKERS
    Waterproof stereo speakers
    HD Audio
  • POWER SUPPLY
    18-60 VDC isolated
    or 9-36 VDC unisolated

    Internal battery for graceful shut down at
    unexpected power outages.
  • DUST AND WATER
    IP65
  • OPERATING / STORAGE TEMPERATURE
    Operating temp. -30° C to 55° C / -22 °F to +131 °F
    Storage temp. -35° C to 75° C / -31 °F to +167 °F
  • HUMIDITY
    10-95% RH
  • VIBRATION
    5–500 Hz/0,04 m/s2 XYZ - IEC 60068-2-64 Fh
  • SHOCK
    30g for 11ms XYZ - IEC 60068-2-27

Videos

Demonstrating JLT PowerTouch™ display technology

Additional Resources

JLT1214P_Datasheet.pdf

JLT1214P_Datasheet.pdf
