IOS BYOD Corporate Email Config

Solved

dxfreight

I wonder if someone could give me some help with an issue i am having.

I have recently setup a byod policy for Apple devices where as i have setup:-

Apple Business Manager
- connected it to our azure environment.
- added domain infomation
VPP Profile
APNS
created managed Apple IDs for the devcies
Enrolled devcies onto Soti
Pushed down a web clip for download apps

However I am struggling with the email configuration, I would like the devices to receive an email confuration so that the end user only needs to type in their user password however when the profile is uploaded to the devcie the only infomation passed over to the devcie is the mail server address which i manually typed into the profile.

The domain infomation, User and email configuration do not appear to to hit the devcie.

The settings i am using are:-

Domain:- %ENROLLEDUSER_DOMAIN%

User:-%ENROLLEDUSER_UPN%

Email Configuration:-%ENROLLEDUSER_EMAIL%

the vewrsion of mobicontrol i am using is: 15.0.1.1181

Regards

Mark

iOS email exchange abm

5 years ago

iOS

ANSWERS

Adil Katchi

5 years ago

Hi Mark,

In order to be able to use the %ENROLLEDUSER% macros, you need to:

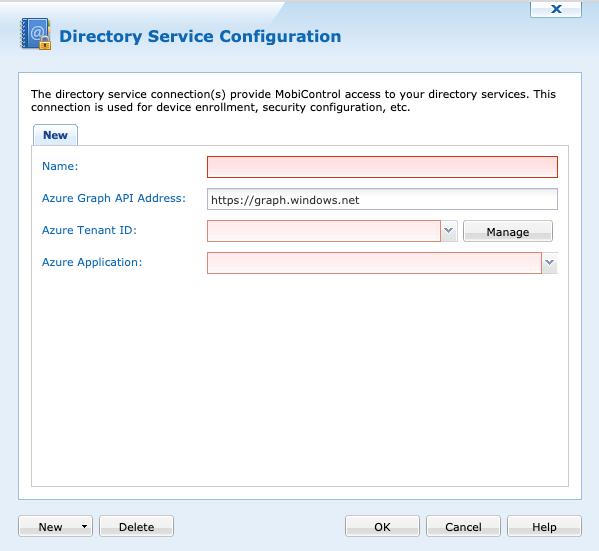

1. Configure your Azure AD connection under the "Directory Service Configuration" section of Global Settings

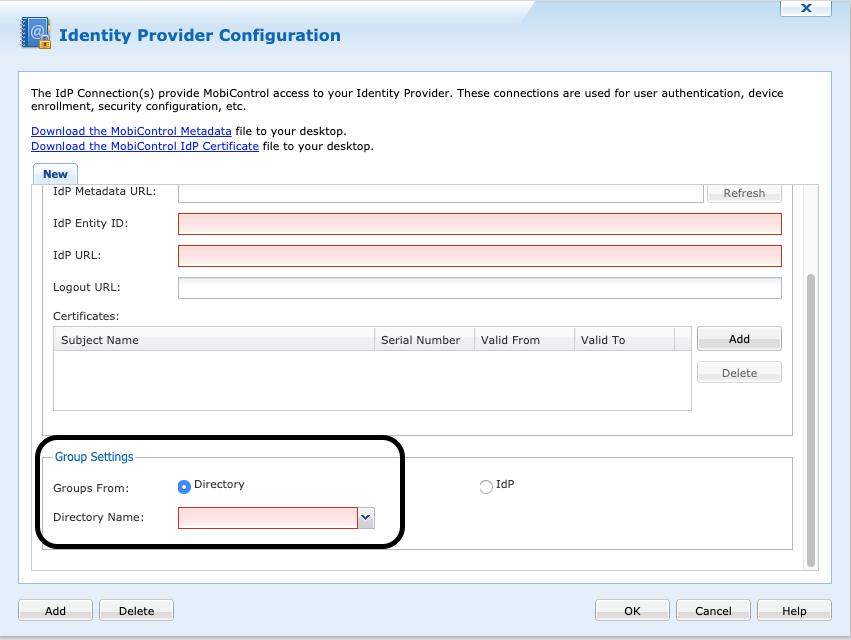

2. Configure the Azure AD as an Identity Provider under the "Identity Provider Configuration" section of Global Settings. You'll need to link this Identity Provider configuration with the Azure AD connection you configured in Step 1 by selecting it under the "Group Settings"

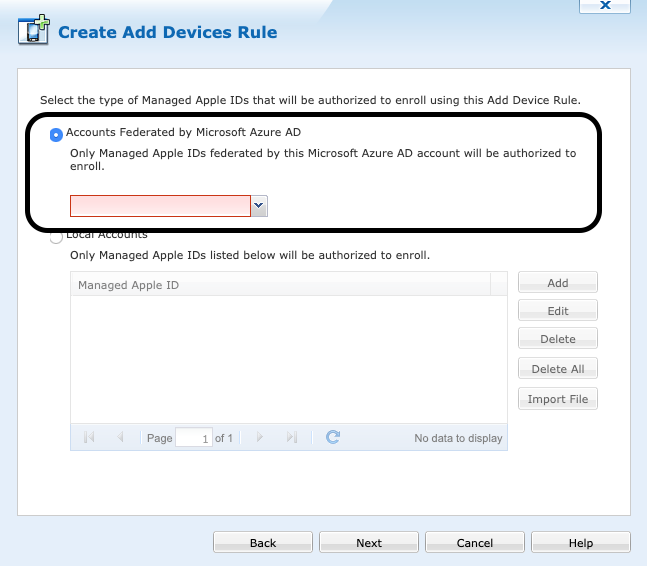

3. Select the Azure AD connection configured in step 1 in your Apple Add Device Rule when selecting the type of Managed Apple IDs that will be authorized to enroll.

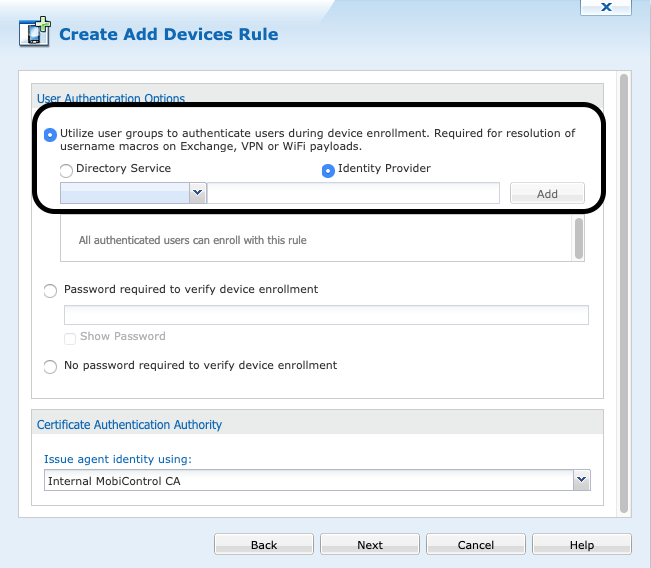

4. Select the Azure AD Identity Provider configured in Step 2 in your Apple Add Device Rule when selecting the type of authentication you want in your enrollment webpages.
