Hi,
I configured a lockdown for Samsung tablets.

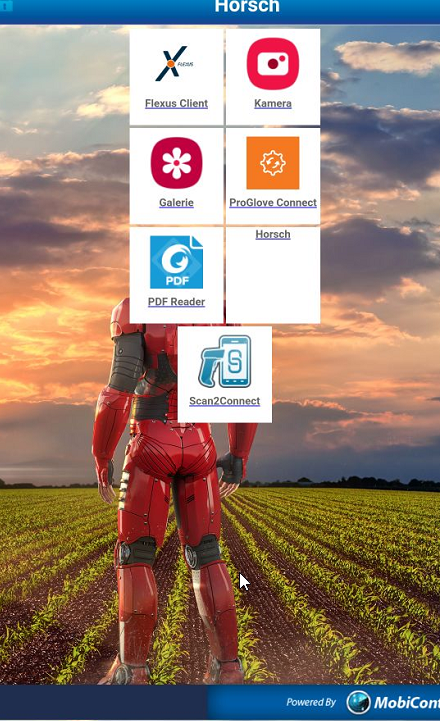

Right now it looks like this
I want to have the "Icons" without the white "background". How can I edit this so it is transparent?
Also: Under "Horsch", the icon doesn't get shown, although I marked an Icon as active and also it doesn't open a browser. I used: browsers://htmllink
Please find the HTML code as follows
"<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>Android/Desktop Lockdown</title>
<style type="text/css">
html, body { height: 99.3%; }
body {
margin: 4px 4px 0px 4px;
background-image: url('<MCImg_HORSCH_FarmingHero_Teaser_small.jpg>');
background-position: center;
background-size: cover;
}
#wrapper {
min-height: 100%;
height: auto !important;
height: 100%;
margin: 0 auto -4em;
}
#Header {
background: url('<MCImg_BkgHeaderRepeat.png>') repeat-x;
height: 71px;
width: 100%;
}
#Header .lockicon {
background: url('<MCImg_HeaderLock.png>') no-repeat;
width: 69px;
height: 71px;
float: left;
position: absolute;
}
#Header .Title {
font: bold 30px arial,sans-serif;
text-align: center;
line-height: 71px;
color: #fff;
margin-left: 69px;
display:block;
}
#Main {
text-align:center;
margin: 4px 0 100px;
}
#Main .row {
display:table;
white-space:nowrap;
margin: 0px auto;
}
#Main .row ul {
list-style: none;
margin:0;
padding:0;
display: table-row;
white-space:nowrap;
}
#Main .row ul br {clear: both;}
#Main .row ul li {
width: 149px;
height: 153px;
padding: 2px;
/* border: 2px #666666 solid; */
margin: 2px 4px 2px 0px;
vertical-align: middle;
text-align: center;
background-color: #FFF;
position: relative;
display:table-cell;
float:left
}
#Main .row ul li img {
border: 0;
width: 86px;
height: 86px;
padding: 12px;
}
#Main .row ul li .txt {
color: #666666;
font: bold 16px arial,sans-serif;
}
#Footer {
font: bold 30px arial,sans-serif;
color: #fff;
position:fixed;
bottom:0;
margin:0;
padding:0;
width:100%;
height: 57px;
}
/* IE7+ fix */
html > body #Footer {
margin:0 0 0 -4px;
padding:0 4px;
}
#Footer .FooterContainer {
margin:0;
display:block;
overflow:hidden;
height: 57px;
line-height: 57px;
background: url('<MCImg_BkgFooterRepeat.jpg>') repeat-x;
}
/* IE7+ fix */
html > body #Footer .FooterContainer {
margin:0 8px 0 0;
}
#Footer .FooterContainer .FooterBg {
background: url('<MCImg_poweredbysoti.jpg>') no-repeat;
width: 426px;
height: 57px;
float: right;
}
#Footer, .push {
height: 2em;
height: 57px \0/;
}
</style>
<!--[if lt IE 8]>
<style type="text/css">
#Main .row ul {display:inline-block;}
#Main .row ul{display:inline; }
#Main .row ul li{display:inline-block}
#Main .row ul li{ display:inline;}
#Main .row ul a{ display:inline-block;}
#Main{text-align:center}
</style>
<![endif]-->
</head>
<body>
<div id="wrapper">
<div id="Header">
<div class="lockicon"></div>
<span class="Title">Horsch</span>
</div>
<div id="Main">
<div class="row">
<ul>
<!-- To display the image for the item rather than use the EXE icon use this line instead
<li><A href ="<MCLink0>"><img src="<MCDispImg0>" /><div class="txt"><MCDISP0></div></a></li>-->
<li><A href ="<MCLink0>"><img src="<MCExeIcon0>" onerror="this.style.display='none'" /><div class="txt"><MCDISP0></div></a></li>
<li><A href ="<MCLink1>"><img src="<MCExeIcon1>" onerror="this.style.display='none'" /><div class="txt"><MCDISP1></div></a></li>
</ul>
</div>
<div class="row">
<ul>
<li><A href ="<MCLink2>"><img src="<MCExeIcon2>" onerror="this.style.display='none'" /><div class="txt"><MCDISP2></div></a></li>
<li><A href ="<MCLink3>"><img src="<MCExeIcon3>" onerror="this.style.display='none'" /><div class="txt"><MCDISP3></div></a></li>
</ul>
</div>
<div class="row">
<ul>
<li><A href ="<MCLink4>"><img src="<MCExeIcon4>" onerror="this.style.display='none'" /><div class="txt"><MCDISP4></div></a></li>
<li><A href ="<MCLink5>"><img src="<MCExeIcon5>" onerror="this.style.display='none'" /><div class="txt"><MCDISP5></div></a></li>
</ul>
</div>
<div class="row">
<ul>
<li><A href ="<MCLink6>"><img src="<MCExeIcon6>" onerror="this.style.display='none'" /><div class="txt"><MCDISP6></div></a></li>
</ul>
</div>
</div>
<div class="push"></div>
</div>
<div id="Footer">
<div class="FooterContainer">
<div class="FooterBg"></div>
</div>
</div>
</body>
</html>"
