Lockdown Launch Scripts for sub settings TC75x

Solved Locked
MR
Monique, Rossano-Rasmussen
Redwing Technology Corporation dba Gridline (MSP)

Hi Everyone,

I am trying to add an item to the lockdown to launch into the settings>app>storage screen on a Zebra device, TC75x. However, every time I try to run identify_activity, it is showing me: Current activity name: com.android.settings/.SubSettings. That is too generic for the lockdown to navigate to the correct location. All of my devices are in the field so I was wondering if anyone has previously done this and had the package name already. If not, do you know of a script that would clear the cache instead of the data? I have only seen the wipeapplication script.

Enrollment Method: Enterprise

Model: TC75X

OS: 8.1.0

Patch Level: 2019-02-01

4 years ago
Android
ANSWERS
MD
Matt Dermody Diamond Contributor
4 years ago (edited 4 years ago)

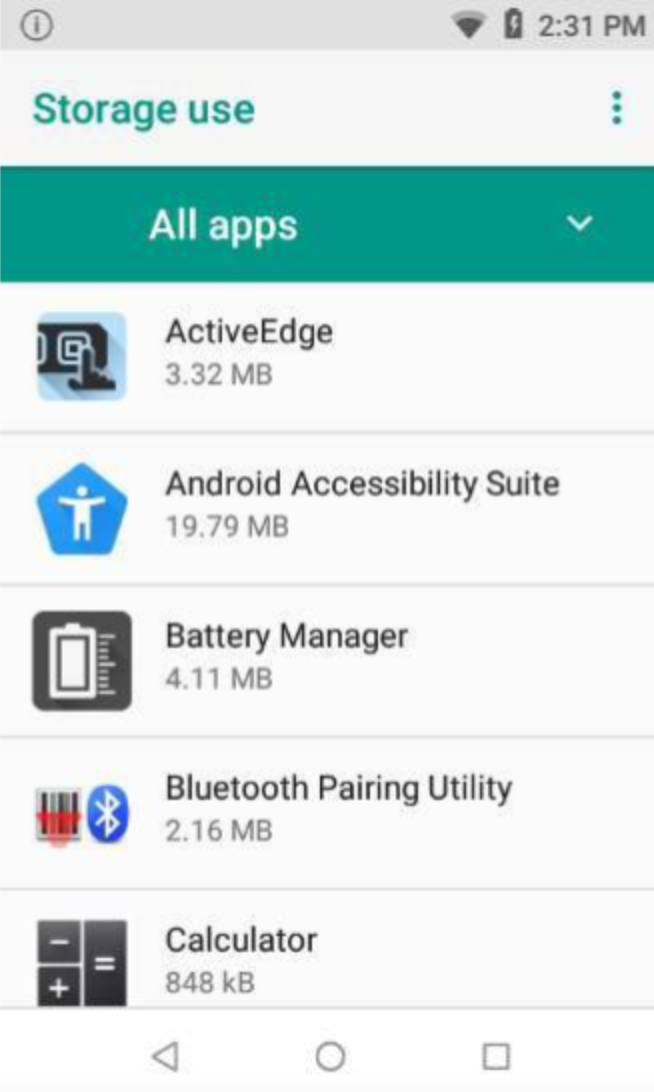

start activity com.android.settings/.applications.StorageUse

Worked for me on a MC3300 which is in the same Atlas product family as a TC75x.

I would still be skeptical about giving end users this limited access as they could do some pretty damaging things from this menu.

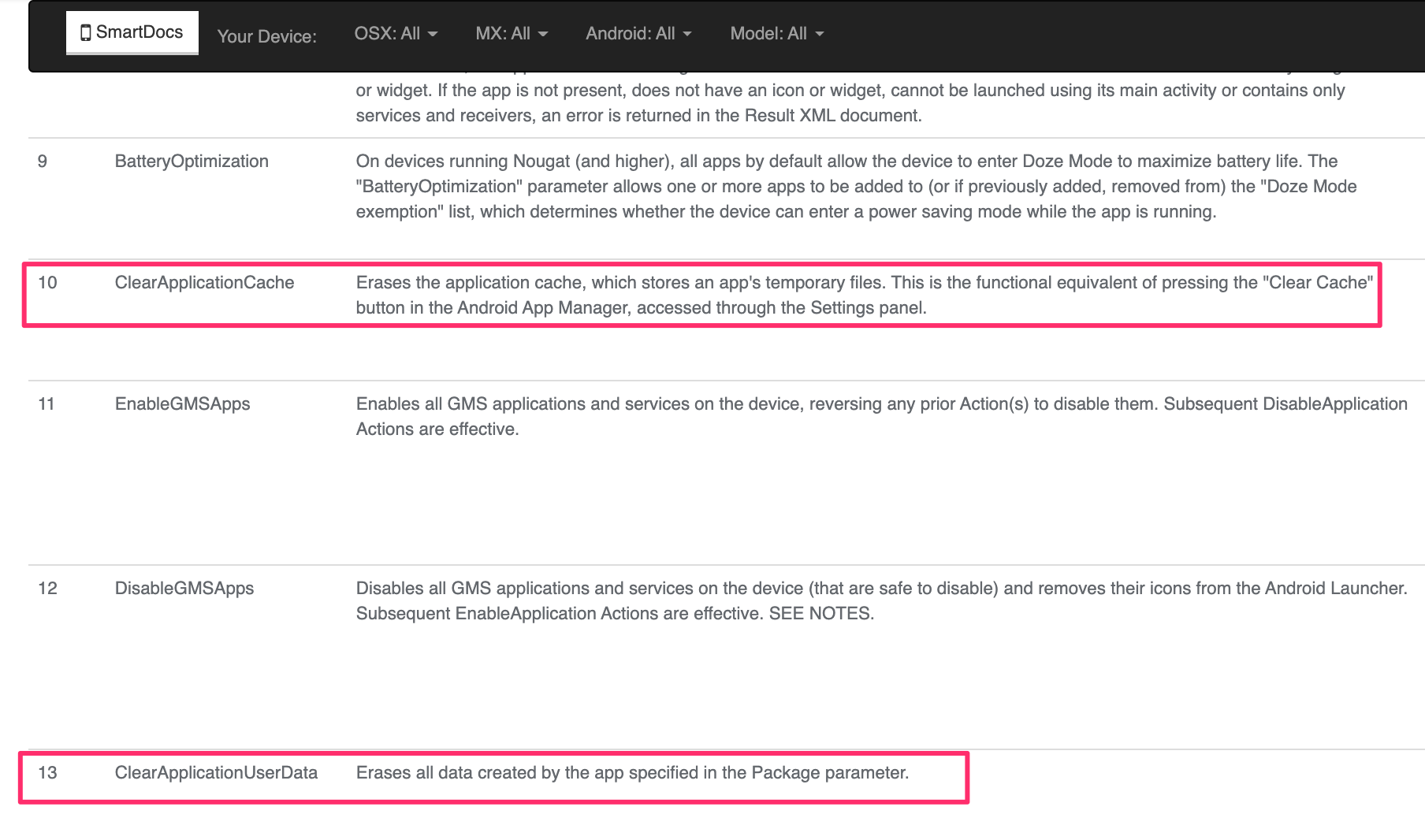

There are MX based options that might be better suited to your needs. You could create a MX based profile in StageNow that clears the app cache that you're looking for. Then you could place that XML file on the device along with a cmd script file including the mxconfig SOTI script used to execute that XML. Then you could point a shortcut on your lockdown utility to the cmd script so end users could run it on demand. This way end users would never need to get into the settings app in order to clear an app cache as the process could be obfuscated into a simple button tap.

Solution
RC
Raymond Chan Diamond Contributor
4 years ago

Different device brands or firmware may have different names.  Thus, without a Zebra TC75X on hand to work on and check, I could only suggest that you try some possible default names such as

  com.android.settings/.Settings$StorageSettingsActivity

  com.android.settings/.applications.StorageUse

RC
Raymond Chan Diamond Contributor
4 years ago (edited 4 years ago)

On top of what Matt said in his post, I would like to add the following.

The UI and layout design of individual device Settings may heavily impact how secure your device or lockdown policy can be.  Not only are all features within a particular page configurable by any device end-user.  If there is any short-cut to access other Settings page(s) in the UI layout,  it can't be ruled out without thorough tests plus other protection policies applied, that any device end-user can change configurations on such Settings page(s), which might partially defeat the purpose of using a lockdown.

Thank you so much! I will try that out. I would definitely prefer a config file to giving users access.

I am new to Stage Now but this is exactly what I needed. Thank you!
